Crystalline Waterproofing

Crystalline waterproofing is a cement-based waterproofing technology designed to protect concrete structures against water penetration. Unlike conventional waterproofing coatings that primarily form a protective layer on the surface, crystalline waterproofing becomes part of the concrete system. Reactive chemicals within the material react with moisture and components present in concrete to form insoluble crystalline structures inside capillaries, pores, and microcracks.
These crystals block pathways through which water can travel, helping reduce water penetration while allowing water vapour to escape. This makes crystalline waterproofing a breathable waterproofing system suitable for structures exposed to moisture and hydrostatic pressure.

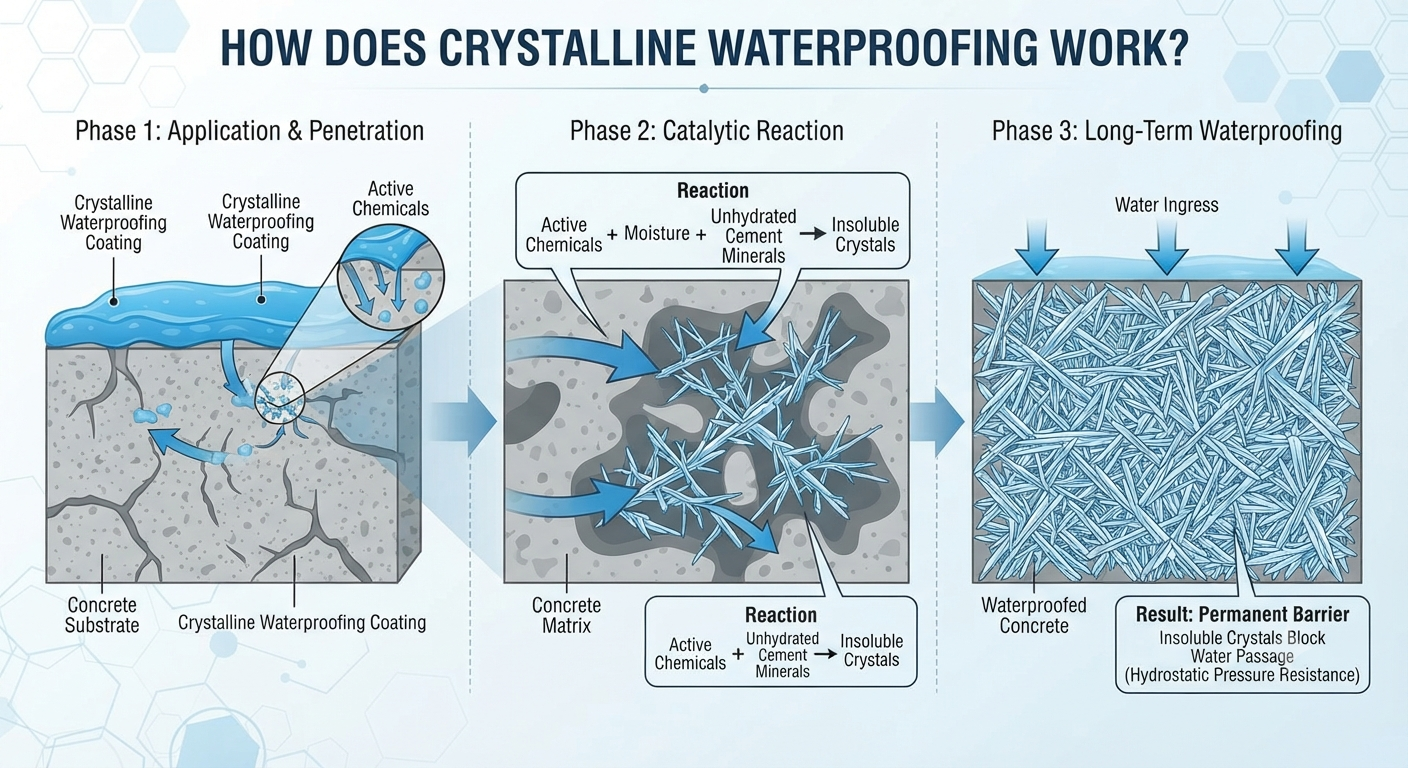

How Does Crystalline Waterproofing Work?

Crystalline waterproofing materials generally contain cement, specially selected reactive chemicals, and fine aggregates such as silica sand. When the material comes into contact with moisture, the reactive chemicals interact with by-products present in the hydrated cement matrix.
This reaction produces microscopic, needle-like crystals that grow inside the pores and capillary channels of concrete. The crystals help block water pathways and reduce permeability.
One important feature of crystalline waterproofing is its ability to reactivate when moisture is present. Small dormant cracks or capillaries can undergo further crystalline growth when exposed to water, helping seal minor water pathways. However, crystalline waterproofing should not be considered a substitute for structural crack repair or movement-joint treatment.

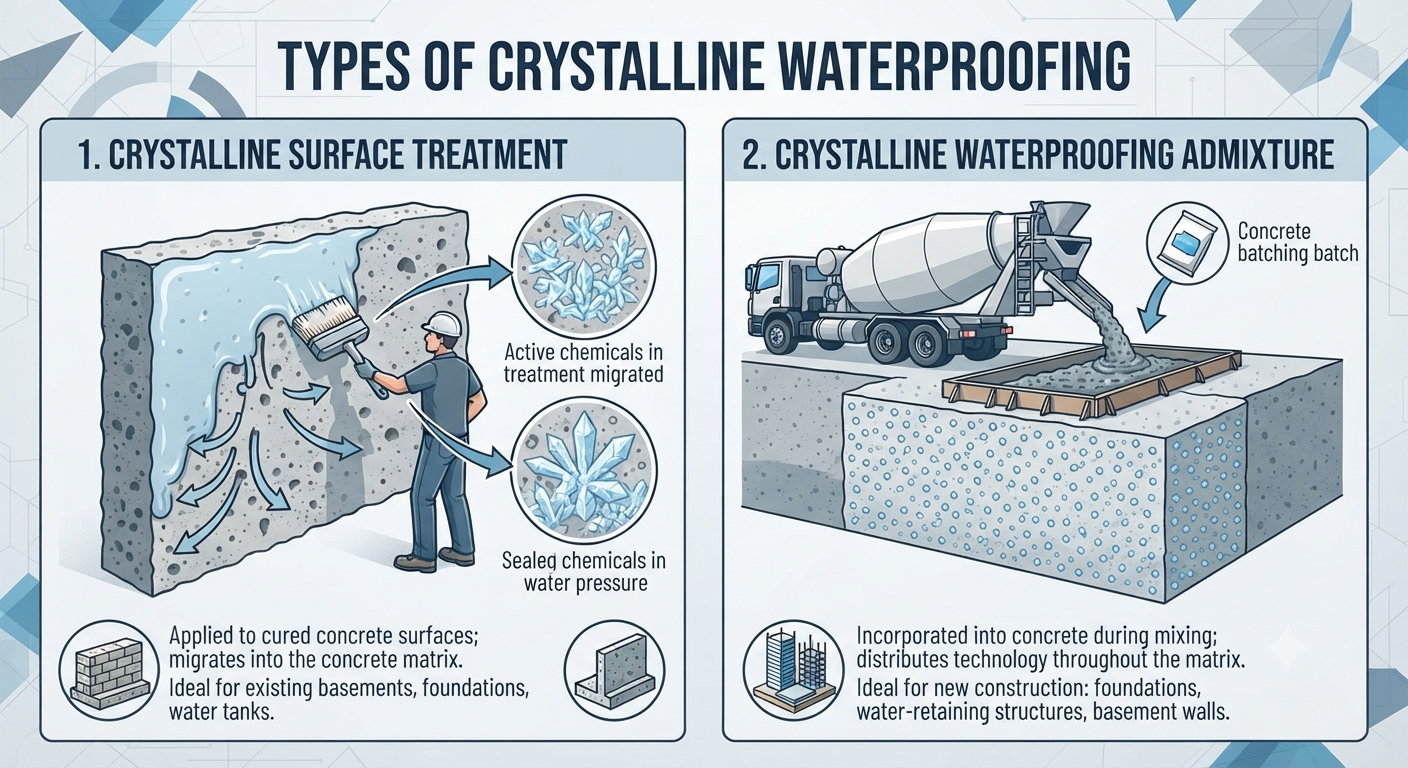

Types of Crystalline Waterproofing

1. Crystalline Surface Treatment

Crystalline surface-applied waterproofing is commonly used for existing concrete structures. The material is mixed with water to create a brushable or sprayable slurry and applied directly onto properly prepared concrete surfaces.
It can be considered for basements, foundations, water tanks, lift pits, and other concrete areas requiring protection from water penetration.

2. Crystalline Waterproofing Admixture

Crystalline waterproofing admixtures are incorporated into concrete during batching. Instead of relying only on a surface application, the waterproofing technology is distributed throughout the concrete matrix.
This approach is generally planned during the construction of new concrete structures and can be useful for foundations, water-retaining structures, basement walls, and other reinforced-concrete elements.

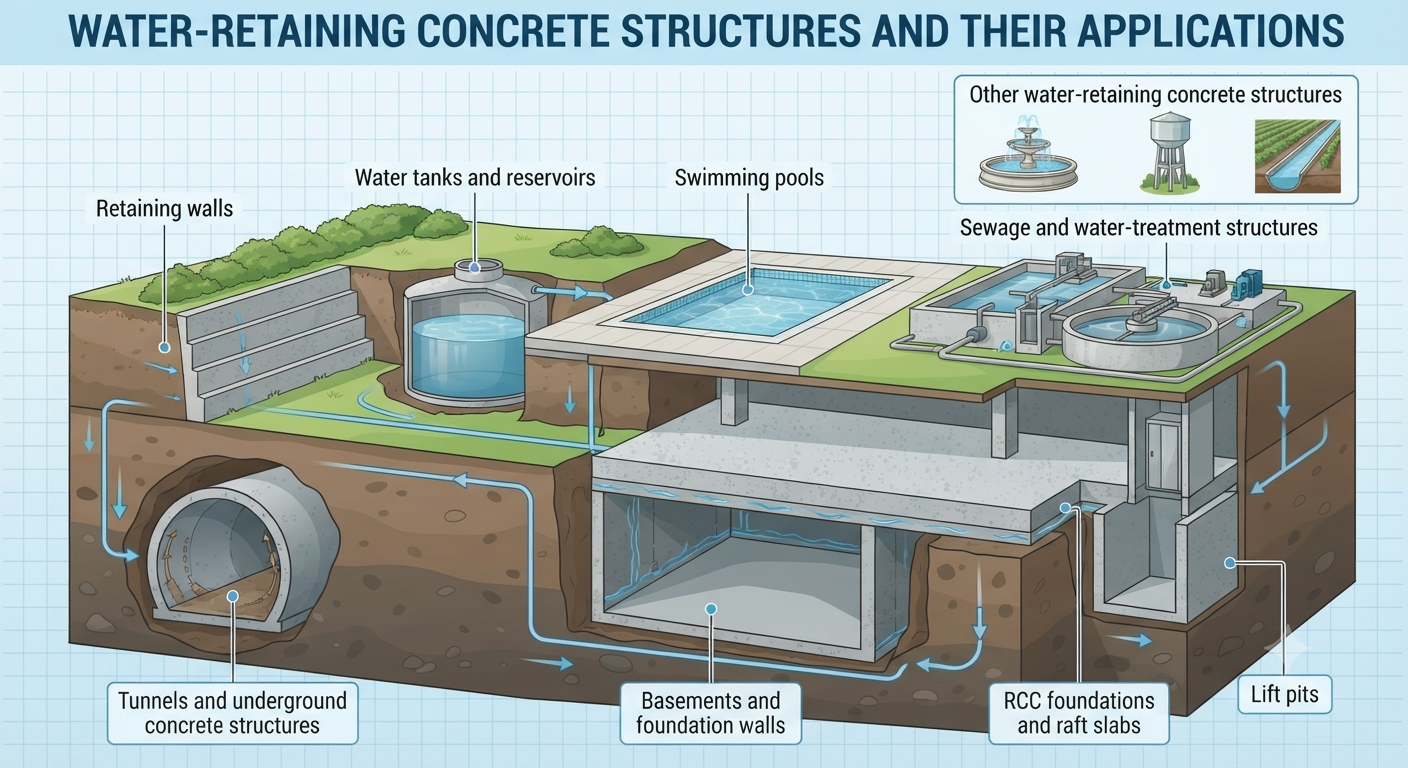

Where Is Crystalline Waterproofing Used?

Crystalline waterproofing is particularly suitable for concrete structures that experience moisture exposure or water pressure. Common applications include:

• Basements and foundation walls

• Lift pits

• RCC foundations and raft slabs

• Retaining walls

• Water tanks and reservoirs

• Swimming pools

• Sewage and water-treatment structures

• Tunnels and underground concrete structures

• Other water-retaining concrete structures

Crystalline Waterproofing Application Process

1. Prepare the Concrete Surface

Proper surface preparation is essential. The concrete should be structurally sound and free from dust, oil, grease, paint, curing compounds, laitance, and other contaminants that could interfere with adhesion and penetration.
The surface is generally prepared in a saturated surface-dry condition, depending on the manufacturer’s application requirements.

2. Prepare the Slurry

The crystalline waterproofing powder is mixed with clean water in the specified proportion to create a consistent brushable slurry. Mixing should follow the product manufacturer’s technical instructions.

3. Apply the Waterproofing

The first coat is applied uniformly over the prepared concrete surface. Where a second coat is specified, it is applied after the appropriate interval, commonly several hours depending on the product and site conditions.
Corners, construction joints, penetrations, and areas prone to leakage require particular attention and may require additional treatment.

4. Cure the Applied Material

Curing is an important part of crystalline waterproofing. The treated surface should be protected from premature drying, excessive heat, and other conditions that may interfere with crystal formation.
Moist curing is generally maintained for the period specified by the manufacturer, often several days. Site conditions and product specifications should always be followed.

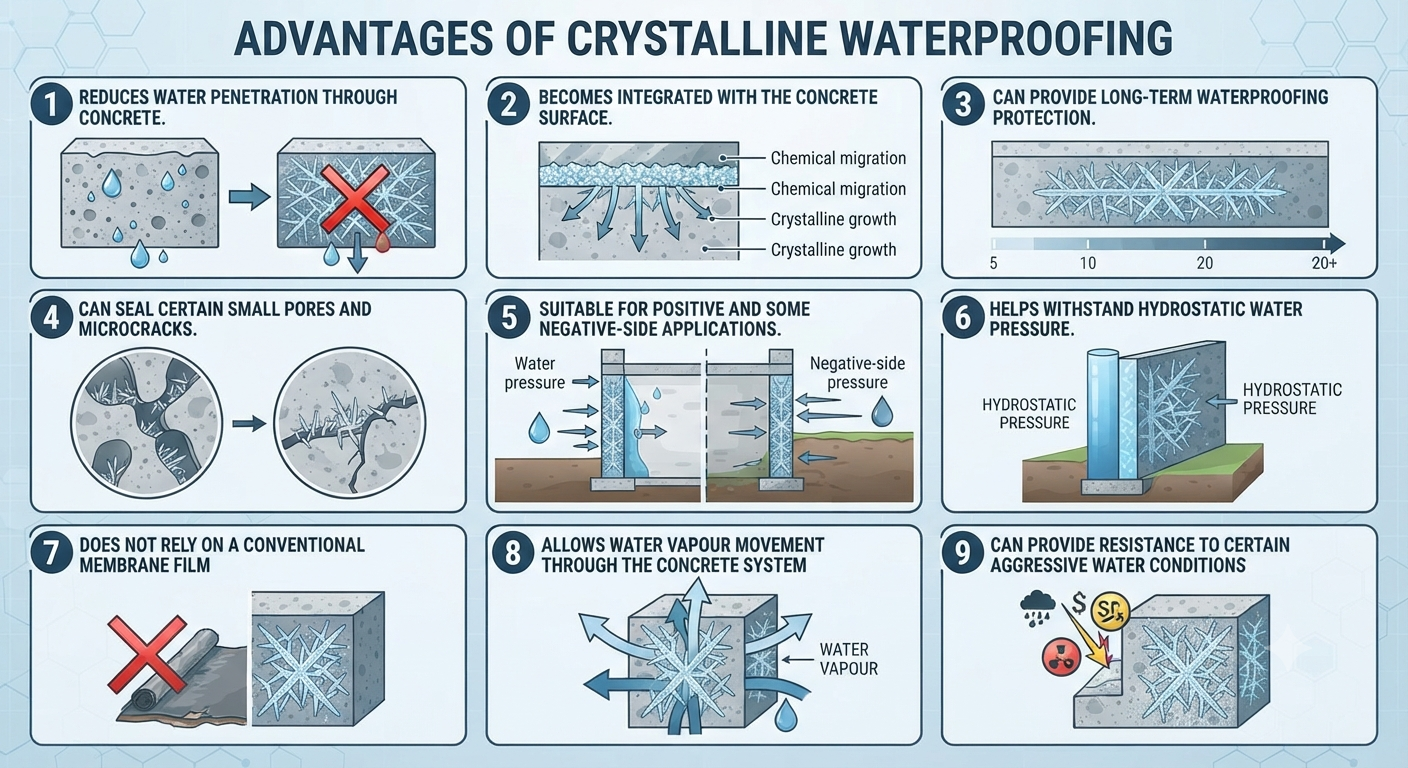

Advantages of Crystalline Waterproofing

Crystalline waterproofing offers several benefits when correctly specified and applied:

• Reduces water penetration through concrete

• Becomes integrated with the concrete surface

• Can provide long-term waterproofing protection

• Can seal certain small pores and microcracks

• Suitable for positive and some negative-side applications

• Helps withstand hydrostatic water pressure

• Does not rely on a conventional membrane film

• Allows water vapour movement through the concrete system

• Can provide resistance to certain aggressive water conditions

Limitations of Crystalline Waterproofing

Despite its advantages, crystalline waterproofing is not suitable for every situation. It is primarily designed for concrete and is not a universal waterproofing treatment for brickwork, plaster, or every type of building material.
It also has limited ability to accommodate large cracks, structural movement, or active expansion joints. Significant cracks, construction joints, pipe penetrations, and movement joints may require separate detailing and repair.
Proper surface preparation, correct mixing, application, and curing are also essential for achieving the intended performance.

Professional Crystalline Waterproofing for Homes and Buildings

Choosing the right waterproofing system depends on the concrete condition, water exposure, structural design, location of the leakage, and whether the project is new construction or an existing building. A professional site assessment can help determine whether crystalline waterproofing, a membrane system, liquid-applied waterproofing, or a combination of methods is appropriate.
